6025 Axial Series

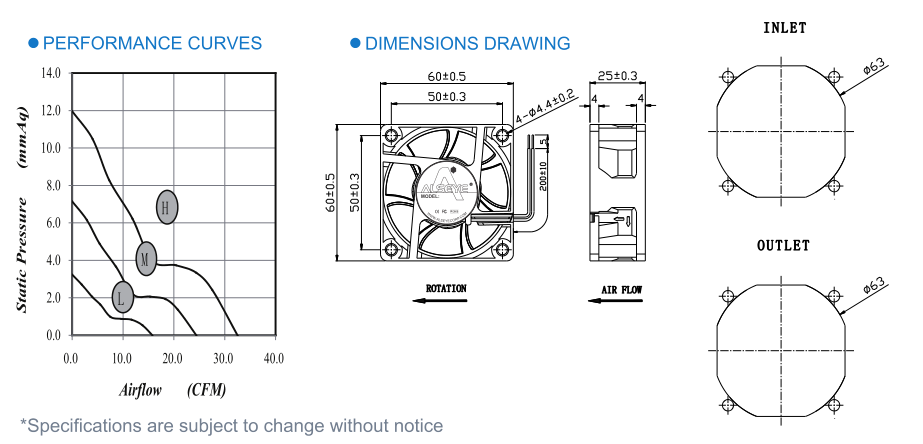

Demensions: 60X60X25 mm
Bearing Ty T T pe:Sleeve,Hydraulic,Ball Bearing
Function Ty T T pe:FG/RD Signal,PWM pulse
Protection:Auto Restart r r Protection or General Options
Lead Wire:UL 1061#26W A A G or Equivalent
Red Wire:Positive(+)
Black Wire:Negative(-)

SKU: 6025 Axial Series Category: DC Fans

MODEL NO	RATING VOLTAGE	RATED CURRENT	POWER	SPEED	AIR FLOW		STATIC PRESSURE		NOISE LEVEL	CURVE
	V	A	W	RPM	CMM	CFM	MMH20	INH20	(dBA)
6025S(B/R)VL-N(P/M)5	5	0.28	1.40	3400	0.447	15.77	3.11	0.122	32.3	L
6025S(B/R)VM-N(P/M)5	5	0.40	2.00	5000	0.692	24.43	6.85	0.270	39.8	M
6025S(B/R)VH-N(P/M)5	5	0.48	2.40	6600	0.922	32.55	11.45	0.451	42.5	H
6025S(B/R)VL-N(P/M)1	12	0.22	2.64	3400	0.447	15.77	3.11	0.122	32.3	L
6025S(B/R)VM-N(P/M)1	12	0.35	4.20	5000	0.692	24.43	6.85	0.270	39.8	M
6025S(B/R)VH-N(P/M)1	12	0.55	6.60	6600	0.922	32.55	11.45	0.451	42.5	H
6025S(B/R)VL-N(P/M)2	24	0.20	4.80	3400	0.447	15.77	3.11	0.122	32.3	L
6025S(B/R)VM-N(P/M)2	24	0.30	7.20	5000	0.692	24.43	6.85	0.270	39.8	M
6025S(B/R)H-N(P/M)2	24	0.50	12.00	6600	0.922	32.55	11.45	0.451	42.5	H
6025S(B/R)VL-N(P/M)4	48	0.08	3.84	3400	0.447	15.77	3.11	0.122	32.3	L
6025S(B/R)VM-N(P/M)4	48	0.15	7.20	5000	0.692	24.43	6.85	0.270	39.8	M
6025S(B/R)VH-N(P/M)4	48	0.38	18.24	6600	0.922	32.55	11.45	0.451	42.5	H
